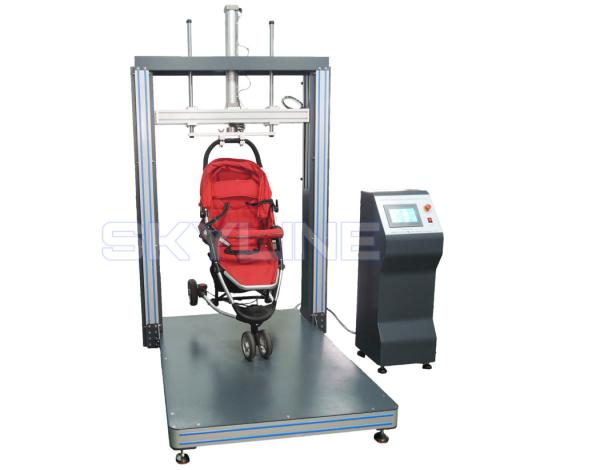

EN1888-2018 Children Products Baby Stroller Handle Durability Tester

Name: EN18882018 Children Products Baby Stroller Handle Durability Tester
Brand: SKYLINE
Price: 1 USD

Wholesale EN1888-2018 Children Products Baby Stroller Handle Durability Tester from china suppliers

Brand Name : SKYLINE

Model Number : SL-BST017

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negoitable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 2 pcs/ month

Delivery Time : 35 working days

Packaging Details : Plywood case

SKYLINE : Baby Stroller Handle Durability Tester

Number of samples : 1 / times

Loading force value : 450N

Front and rear wheels off the ground : 120mm+/-10mm Adjustable

Gas source : 7kgf/cm^2 Stable air supply

Volume (WxDxH) : 140x122x185cm

Weight (approx.) : ≈280Kg

Power supply : 1∮ AC 220V 50Hz 5A

Contact Now

EN1888-2018 Baby Stroller Handle Durability Tester

Use

This tester is suitable for the durability test of the push-pull stroller when simulating over obstacles.

Principle

Put the model baby in the platform, when lifting: make the rear wheel of the platform 120mm +/- 10mm away from the area, when pressing down: make the front wheel of the platform 120mm +/- 10mm off the ground, at a speed of 15 ± 1 times / MIN After the continuous reciprocating test 10,000 times, visually inspect the car for damage.

According to the standard

This tester is made according to the requirements of section 8.10.6.2.2 of EN-1888-2012.

Specifications

Sample	Stroller
Number of samples	1 / times
Loading force value	450N
Front and rear wheels off the ground	120mm+/-10mm Adjustable
Volume (WxDxH)	Host :140x122x185cm
Weight (approx.)	≈280Kg
Gas source	7kgf/cm^2 Stable air supply
Power supply	1∮ AC 220V 50Hz 5A

Please review video of the Baby Stroller Handle Durability Tester operation as below link:

https://youtu.be/wl8pR4T82RQ

Baby Stroller Handle Durability Tester.pdf
